Testing OpenGL on Dual RTX 2080Ti without NVLink connection

Intro

Before you dive into this post, I highly recommend checking out the previous chapter of my little GPU saga — where I accidentally ordered the wrong NVLink bridge and decided to turn my misfortune into a full-blown experiment. That story sets the stage for everything that follows here, as this post picks up right where the last one left off — with two GPUs, one impatient tinkerer, and a quest to squeeze every bit of performance out of silicon (with or without the bridge).

And so this chapter begins — a deep dive into how OpenGL behaves on a dual-GPU system without NVLink, without PRIME, and without Optimus. I wanted to know:

• How does Ubuntu 25.10 handle OpenGL workloads across two discrete GPUs?
• Which GPU actually does the rendering when one is headless?
• Does separating rendering from display introduce bottlenecks?
• And most importantly, what configuration squeezes out the absolute best performance and image quality?

Current setup by nvidia-smi is 2 RTX 2080 Ti, NVIDIA driver 580 (open):

nvidia-smi
Thu Oct 30 21:55:45 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 580.95.05              Driver Version: 580.95.05      CUDA Version: 13.0     |
+-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  NVIDIA GeForce RTX 2080 Ti     Off |   00000000:03:00.0 Off |                  N/A |
| 18%   38C    P8             21W /  250W |     330MiB /  11264MiB |      0%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+
|   1  NVIDIA GeForce RTX 2080 Ti     Off |   00000000:04:00.0  On |                  N/A |
| 18%   39C    P8             15W /  250W |     166MiB /  11264MiB |      0%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

1. Overview

This guide focuses exclusively on OpenGL configuration and performance testing for systems equipped with two NVIDIA RTX 2080 Ti GPUs running Ubuntu 25.10 with the nvidia-driver-580-open package.

Where are the three packages on NVIDIA drivers:

• nvidia-driver-580: This is (traditionally) the full NVIDIA proprietary driver package — includes the kernel modules, Xorg/Wayland 2D/3D libraries, 32-bit compatibility libs, CUDA support, etc.
• nvidia-driver-580-open: This is a variant that uses the open-kernel-modules (or NVIDIA’s “open kernel modules”) rather than the fully closed proprietary kernel module. It is part of NVIDIA’s shift toward open-source kernel components for Linux.
• nvidia-driver-580-server: This edition is optimized for data centers, compute nodes, and headless environments rather than desktop graphics. It includes the same core driver stack, but with configurations and defaults tuned for stability, long uptimes, and CUDA workloads.

Key Feature Differences & Implications:

In short:

• nvidia-driver-580 → Best for desktops and gaming.
• nvidia-driver-580-open → Same as above but with open-source kernel modules.
• nvidia-driver-580-server → Tuned for compute and headless environments (e.g., AI, CUDA, rendering farms).

We’ll verify that both GPUs are recognized, confirm that OpenGL rendering runs on the expected GPU, and perform controlled tests with glxgears and glmark2.
This setup does not use PRIME or Optimus — both GPUs are discrete, with:

• GPU 1 → connected to the display (primary GPU)
• GPU 0 → headless (secondary GPU, no display output)

2. Understanding OpenGL on Linux

OpenGL on Linux sits atop your GPU’s driver stack. For NVIDIA cards, the key components are:

If OpenGL is properly configured, it will render via the NVIDIA driver — not via Mesa’s software renderer (llvmpipe) as I did in the previous post.

3. Preliminary Setup

Step 1 — Install the Necessary Packages

sudo apt update
sudo apt install mesa-utils mesa-utils-extra nvidia-driver-580-open

This installs:

• glxinfo and glxgears — OpenGL test tools
• The latest NVIDIA Open driver for Ubuntu 25.10, it should be the 580.

Reboot to activate the kernel modules:

sudo reboot

4. Verifying GPU Detection

Run:

nvidia-smi

Expected output (example from my actual system):

Tue Oct 28 17:02:20 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 580.95.05              Driver Version: 580.95.05      CUDA Version: 13.0     |
+-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  NVIDIA GeForce RTX 2080 Ti     Off |   00000000:03:00.0 Off |                  N/A |
| 18%   43C    P8             21W /  250W |     594MiB /  11264MiB |      3%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+
|   1  NVIDIA GeForce RTX 2080 Ti     Off |   00000000:04:00.0  On |                  N/A |
| 18%   53C    P8             17W /  250W |     165MiB /  11264MiB |      3%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

• GPU 1 (Disp.A = On) drives the display.
• GPU 0 (Disp.A = Off) is headless.

5. Confirm OpenGL Renderer

5.1 Checking OpenGL Information

Run the following command to see the current OpenGL information:

glxinfo | grep "OpenGL"

This command displays details about your GPU, driver, and renderer in use. For multi-GPU systems, this helps verify which GPU is actually doing the work (discrete vs. integrated).

You’ll see output like:

OpenGL vendor string: NVIDIA Corporation
OpenGL renderer string: GeForce RTX 2080 Ti/PCIe/SSE2
OpenGL version string: 4.6.0 NVIDIA 560.35.03

Use this command to get the OpenGL renderer:

glxinfo | grep "OpenGL renderer"

Expected output:

OpenGL renderer string: NVIDIA GeForce RTX 2080 Ti/PCIe/SSE2

If you see:

OpenGL renderer string: llvmpipe (LLVM x.y, x bits)

It means hardware acceleration is not active — reinstall the NVIDIA driver.

6. Running glxgears

6.1 Launch the Test

glxgears

You’ll see a window with three rotating gears and FPS output like:

301 frames in 5.0 seconds = 60.015 FPS

Note:

As I told you before,glxgears is not a benchmark — it’s a sanity test to confirm that OpenGL rendering is working correctly.

6.2 Bind to a Specific GPU

If you want to explicitly render on the headless GPU 0, you can use NVIDIA’s GPU display device selection.

First, identify available devices:

xrandr --listproviders

The output:

Providers: number : 0

Then use the __GLX_VENDOR_LIBRARY_NAME variable to target NVIDIA explicitly:

__GLX_VENDOR_LIBRARY_NAME=nvidia glxgears

However, since GPU 0 has no connected display, you’ll need a virtual display (X server) or an off-screen rendering context (EGL headless) to run OpenGL there (explained below).

The Results:

15132 frames in 5.0 seconds = 3026.306 FPS
15455 frames in 5.0 seconds = 3090.827 FPS
15513 frames in 5.0 seconds = 3101.881 FPS
15361 frames in 5.0 seconds = 3072.163 FPS
15368 frames in 5.0 seconds = 3073.485 FPS
15400 frames in 5.0 seconds = 3079.922 FPS
15331 frames in 5.0 seconds = 3066.059 FPS
15465 frames in 5.0 seconds = 3092.986 FPS
15396 frames in 5.0 seconds = 3079.095 FPS
15421 frames in 5.0 seconds = 3084.134 FPS

7. Benchmarking OpenGL Performance

While glxgears only checks functionality, for actual performance use glmark2.

7.1 Install glmark2

sudo apt install glmark2

7.2 Run Full OpenGL Benchmark

glmark2

Typical output:

vblank_mode=0 __GL_SYNC_TO_VBLANK=0 glmark2
=======================================================
    glmark2 2023.01
=======================================================
    OpenGL Information
    GL_VENDOR:      NVIDIA Corporation
    GL_RENDERER:    NVIDIA GeForce RTX 2080 Ti/PCIe/SSE2
    GL_VERSION:     4.6.0 NVIDIA 580.95.05
    Surface Config: buf=32 r=8 g=8 b=8 a=8 depth=24 stencil=0 samples=0
    Surface Size:   800x600 windowed
=======================================================
[build] use-vbo=false: FPS: 2479 FrameTime: 0.403 ms
[build] use-vbo=true: FPS: 3036 FrameTime: 0.329 ms
[texture] texture-filter=nearest: FPS: 3027 FrameTime: 0.330 ms
[texture] texture-filter=linear: FPS: 3027 FrameTime: 0.330 ms
[texture] texture-filter=mipmap: FPS: 3004 FrameTime: 0.333 ms
[shading] shading=gouraud: FPS: 2969 FrameTime: 0.337 ms
...
FrameTime: 0.333 ms
[loop] fragment-steps=5:fragment-uniform=false:vertex-steps=5: FPS: 3007 FrameTime: 0.333 ms
[loop] fragment-steps=5:fragment-uniform=true:vertex-steps=5: FPS: 3002 FrameTime: 0.333 ms
=======================================================
                                  glmark2 Score: 2662
=======================================================

8. Advanced: Testing Image Quality & Synchronization

8.1 Check Vertical Sync (VSync)

VSync limits the FPS to your display’s refresh rate (usually 60 Hz).

Run:

vblank_mode=0 glxgears

or with the NVIDIA version of this parameter:

__GL_SYNC_TO_VBLANK=0 glxgears

to disable VSync and measure raw OpenGL throughput.

If FPS jumps from 60 → 1000+, hardware acceleration is confirmed, and you finally not binded to monitor frequency.

8.2 Test Multi-GPU Workload Distribution

If both GPUs are active, run one benchmark per GPU:

DISPLAY=:0 glmark2 &
DISPLAY=:1 glmark2 &

Then check with:

nvidia-smi -l 1

You should see both GPUs engaged simultaneously — perfect for heavy multitasking or concurrent rendering setups.

9. Tuning for Maximum OpenGL Performance

10. Best Practices for Dual-GPU OpenGL

11. Troubleshooting

12. Summary: Ideal Setup for Quality & Performance

13 My Results and Reflections on OpenGL Performance

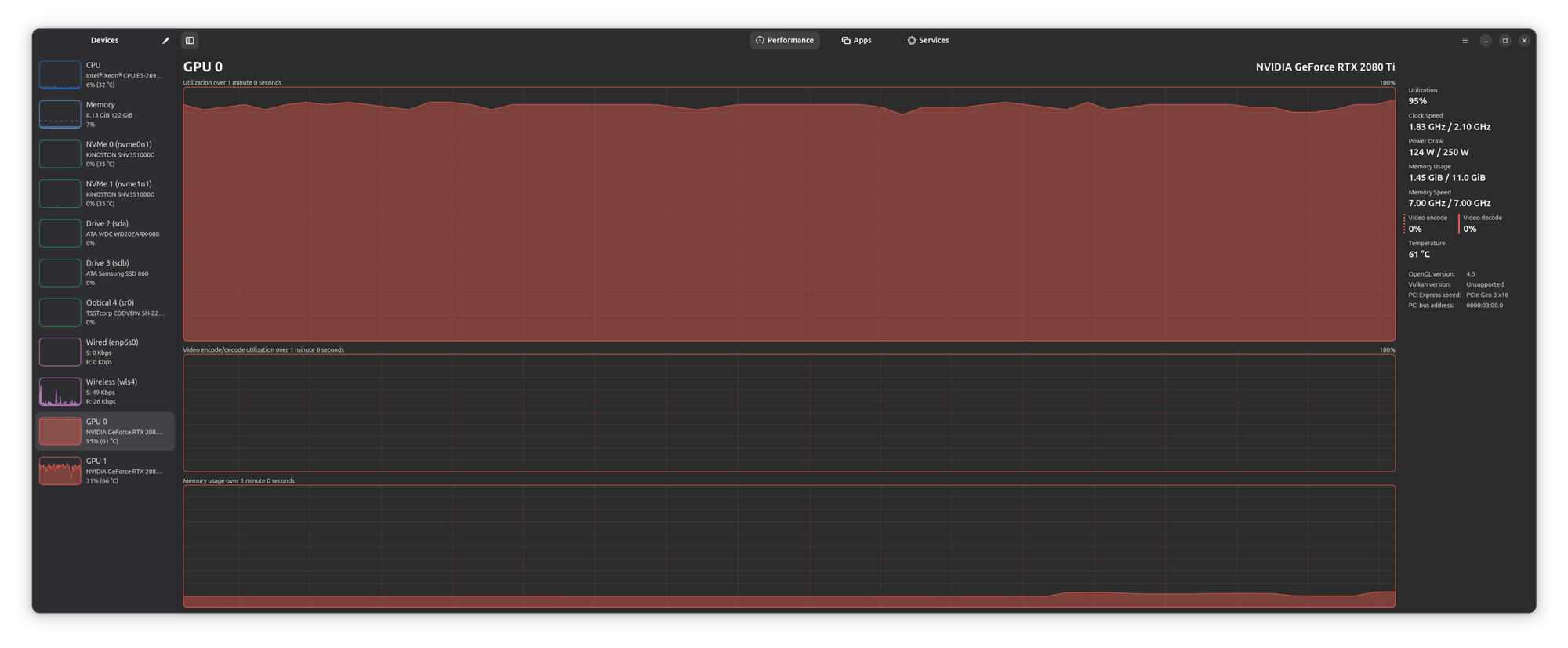

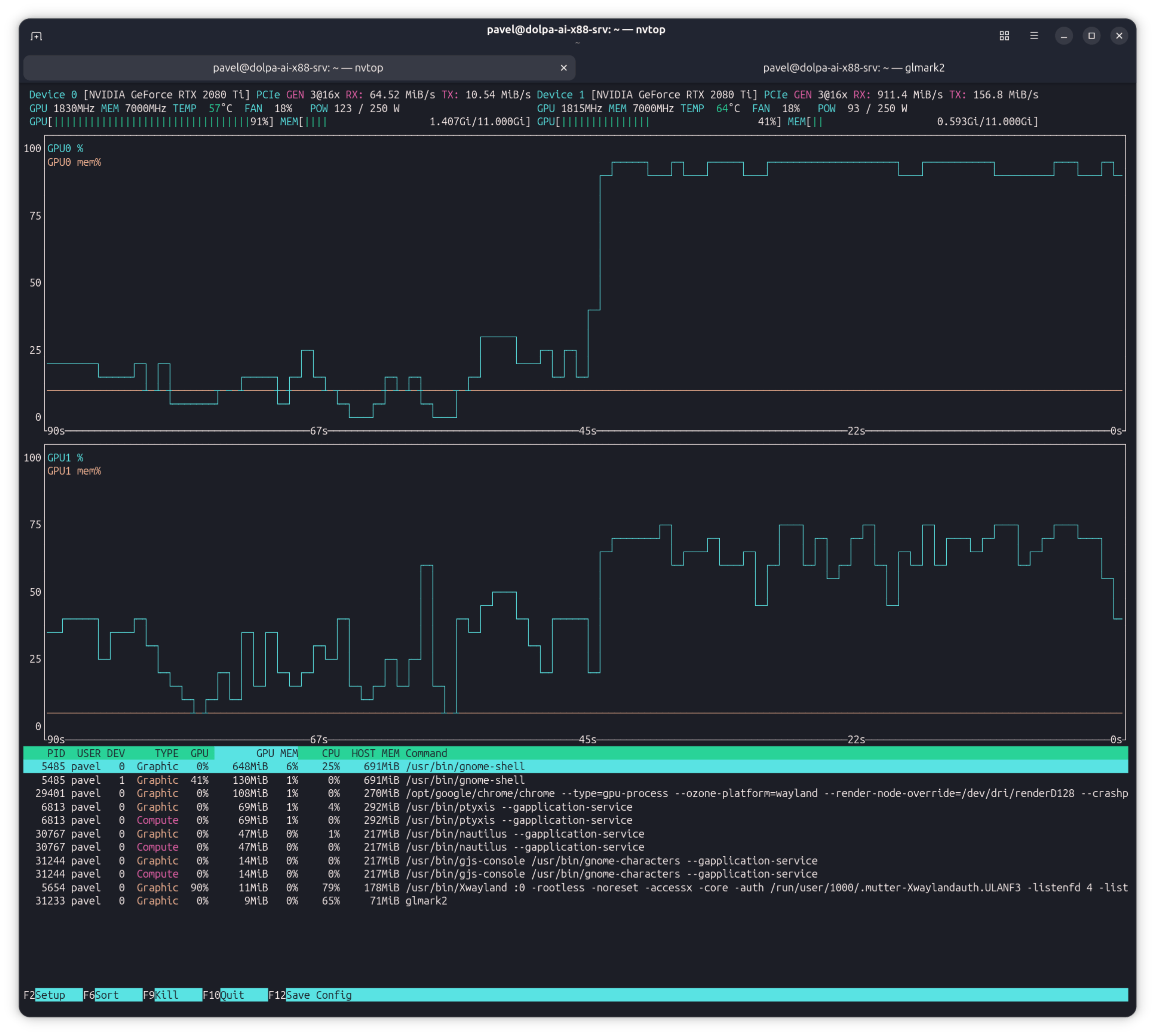

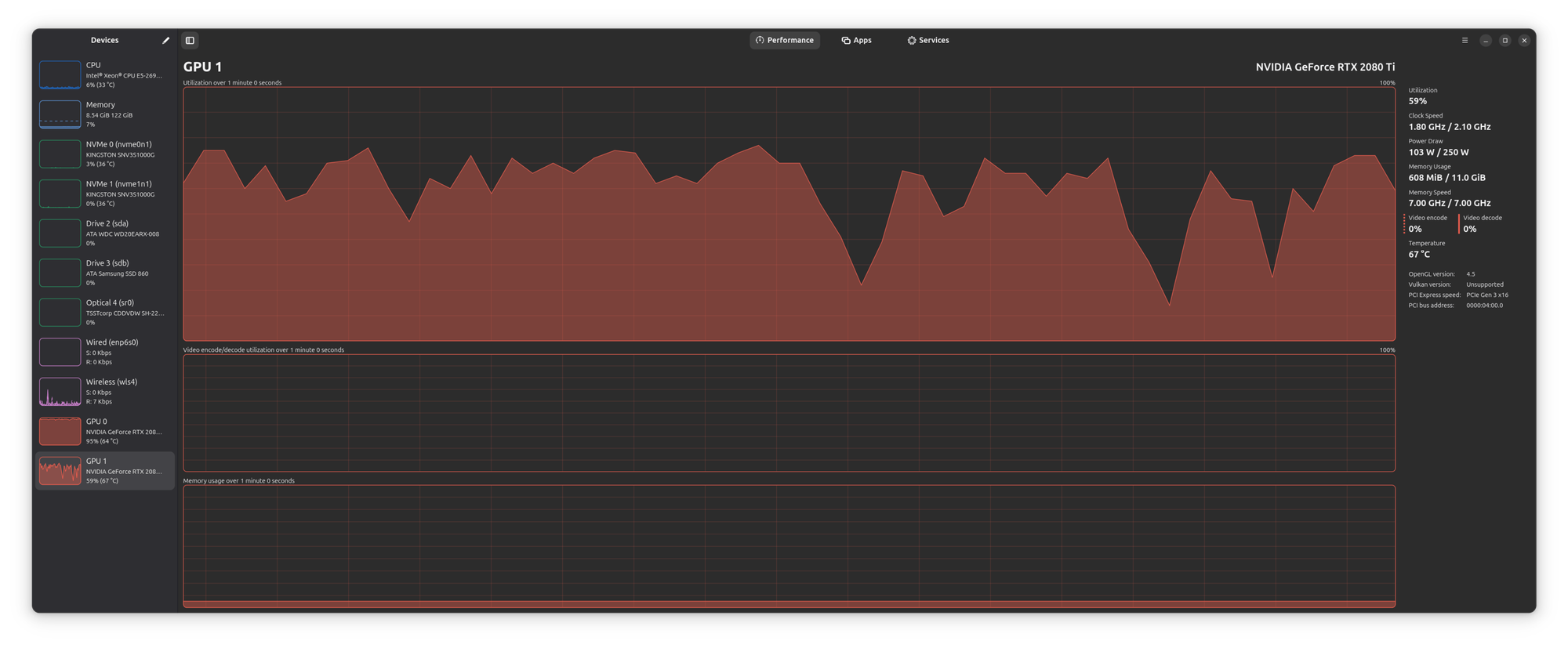

The score is really low compared to the modern systems, only 2662 points on glmark2 and only around 3200 FPS on glxgears. At the same time, the load is very odd; it looks like the not connected to the monitor GPU is working harder than the one companion, but both GPUs are working under the load.

Conclusion

My dual RTX 2080 Ti system under Ubuntu 25.10 is fully capable of delivering high-quality, low-latency OpenGL rendering without PRIME or Optimus.

For best results:

• Connect your monitor to the GPU you’re rendering on.
• Use glxgears to confirm functionality and glmark2 to measure performance.
• Use headless EGL contexts or virtual X servers for testing the secondary GPU.
• Keep VSync off for benchmarks and on for gameplay smoothness.
• Fine-tune PowerMizer and Coolbits settings for stable, maximum clock speeds.

With this setup, you’ll achieve the best possible OpenGL performance — ready for serious benchmarking or high-frame-rate Linux gaming.
